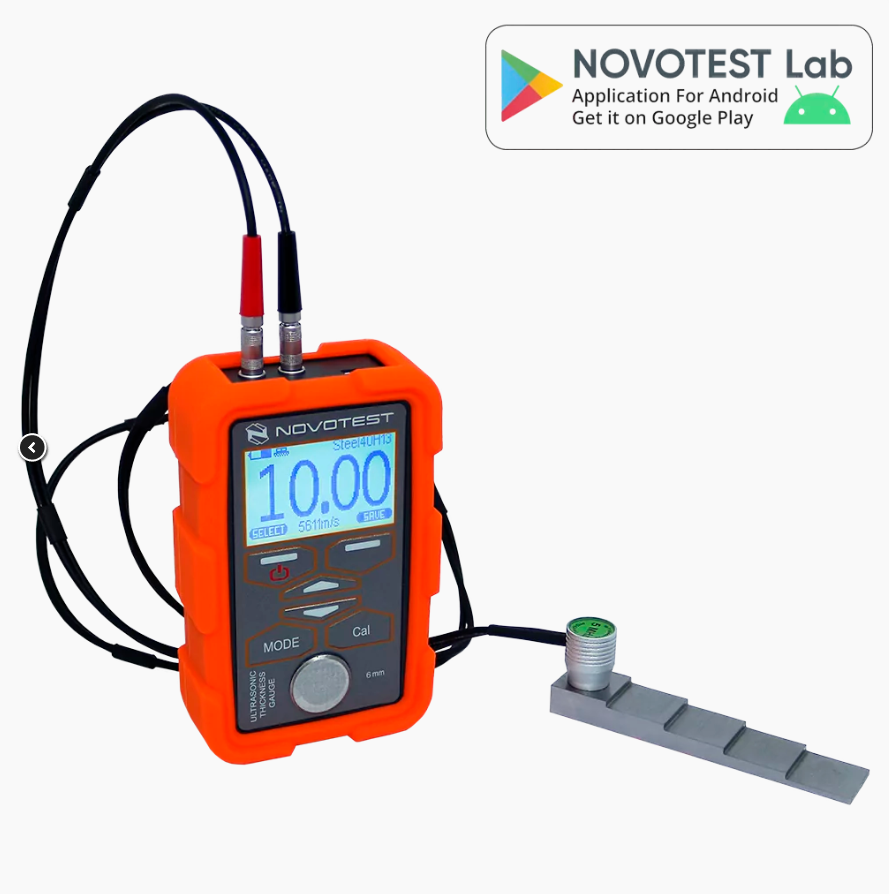

Ultrasonic Thickness Gauge NOVOTEST UT-1M

รหัสสินค้า SKU-00029

0.00 บาท

จำนวนชิ้น	ส่วนลดต่อชิ้น	ราคาสุทธิต่อชิ้น
{{(typeof focus_pdata.price_list[idx+1] == 'undefined')?('≥ '+price_row.min_quantity):((price_row.min_quantity < (focus_pdata.price_list[idx+1].min_quantity - 1))?(price_row.min_quantity+' - '+(focus_pdata.price_list[idx+1].min_quantity - 1)):price_row.min_quantity)}}	{{number_format(((focus_pdata.price_old === null)?focus_pdata.price:focus_pdata.price_old) - price_row.price,2)}} บาท	{{number_format(price_row.price,2)}} บาท



คงเหลือ	ไม่จำกัด ชิ้น
จำนวน (ชิ้น)	- +
ซื้อเลย หยิบลงตะกร้า ซื้อเลย หยิบลงตะกร้า คุณมีสินค้าชิ้นนี้ในตะกร้า 0 ชิ้น
หนังสือรับรองบริษัท บุ๊คแบ๊งค์ คุ้มครองโดย LnwPay

คุยกับร้านค้า	โทร 0863133914 TNEngineeringSupplyandService Add 0863133914
{{ size_chart_name }}
หมวดหมู่	Ultrasonic Inspection
สภาพ	สินค้าใหม่
เพิ่มเติม
สภาพ	สินค้ามือสอง
เกรด
สถานะสินค้า
ระยะเวลาจัดเตรียมสินค้า
เข้าร่วมโปรโมชั่น


Share :

รายละเอียดสินค้า
วิธีการสั่งซื้อ
สินค้าที่เกี่ยวข้อง

รายละเอียดสินค้า

ไฮไลท์

Ultrasonic Thickness Gauge NOVOTEST UT-1M is used for operational non-destructive testing of the thickness of products with one-way access, at the moment this method is the most common in the world for solving such tasks.

ข้อมูล

น้ำหนัก

บาร์โค้ด

ลงสินค้า

อัพเดทล่าสุด

รายละเอียดสินค้า

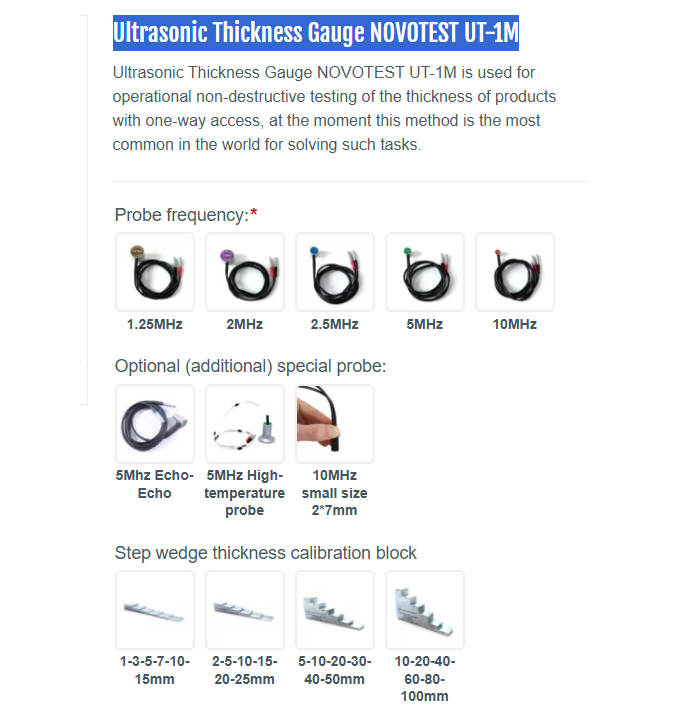

Probe type range for steel, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	0.4-15 0.45-300 0.8-500 2.5-1000 3-1200 4-1500
Probe dimensions, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	4×9×60 D12×15 D17×20 D20×21 D30×28 D30×35
Dimensions of probe contact area/crystal, mm: Probe 10MHz – P112-10-2×3 Probe 10MHz – P112-10-6 / 2 Probe 5MHz – P112-5-10 / 2 Probe 2,5MHz – P112-2,5-12 / 2 Probe 2MHz – P112-2-20 / 2 Probe 1,25MHz – P112-1.25-20 / 2	2×7/2×3 D9/D6 D14/D10 D16/D12 D24/D20 D24/D20
Optional probes: 5MHz high-temperature probe (echo) 10/2 2,5MHz probe (echo-echo) 12/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating 10MHz probe (echo-echo) 6/2 for through coating 5MHz probe (echo-echo) 10/2 for through coating, underwater, 10 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 20 m cable 5MHz probe (echo-echo) 10/2 for through coating, underwater, 30 m cable	range 0,8 – 300 mm, surface temperature up to 250 °С/482 °F range 6 – 30 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 2 – 12 mm, coating thickness range – up to 0,6 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm range 3,5 – 26 mm, coating thickness range – up to 1 mm
Compatible probe types	Ultrasonic, dual-element, longitudinal waves (including probes of other manufacturers)
Compatibility with Active EMAT Transducer EMAT-A1	No
Probe calibrations (V-path, TVG, etc.)	factory for NOVOTEST probes users for probes of other manufacturers
Probe cable connector type	2 Lemo 00
Probe cable length, m	1,2
Measurement scales	mm (m/s) inch (inch/μs)
Measurement resolution, mm/inch	0.01/0.001 (0.01/0.0001 by request)
Basic measurement accuracy, mm	± (0,01 T+0.05) (*For range 0.8 – 300 mm)
Gain range, dB	± 20
Response time, with no more than, s	1
Setting range of the ultrasonic velocity, m / s	1000-17000
Preset velocities for materials	Steel (8 different grades), Aluminum, Iron, Cast Iron, Zinc, Chromium, Copper, Brass, Bronze, Silver, Gold, Nickel, Tungsten, Tin, Lead, Molybdenum, Manganese, Magnesium, Rubber, Polystyrene, Plexiglas, Capron, Caprolon, ED-5, Ebonite, Porcelain, Teflon, Textolite, Silicate Glass, Acrylic glass, User
Device menu modes	Measurement Calibration Archive Memory card Information

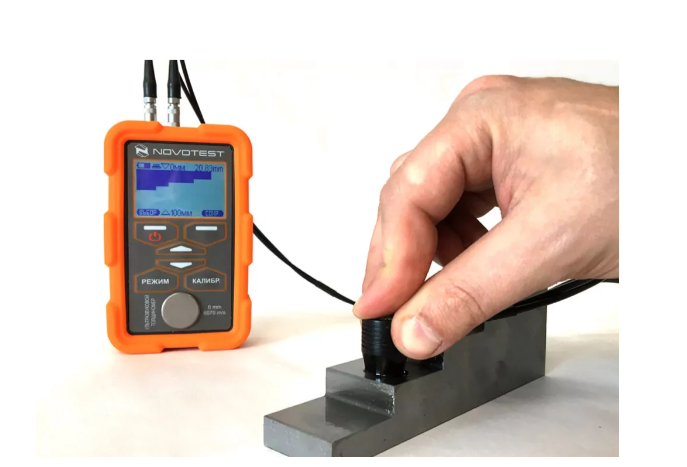

Operating modes	Normal B-scan Control mode
Standards	ASTM E797 EN 14127 EN15317

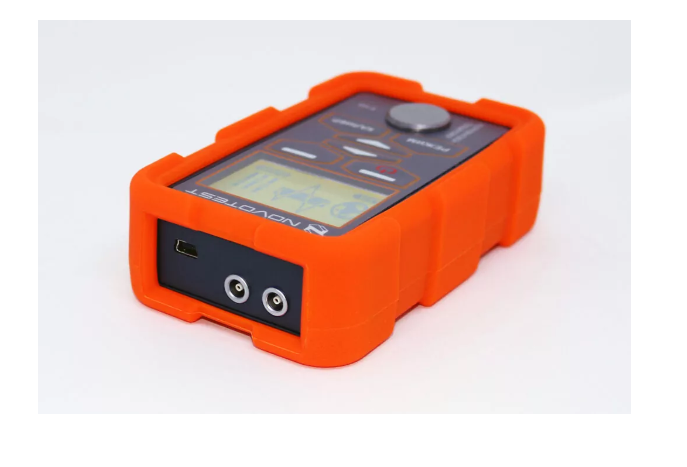

Body type / Dust and moisture protection level	Plastic, with shockproof silicone case Standard for shop and field operation IP54
Calibration thickness block on the body	6 mm (Steel/~6080 m/s)

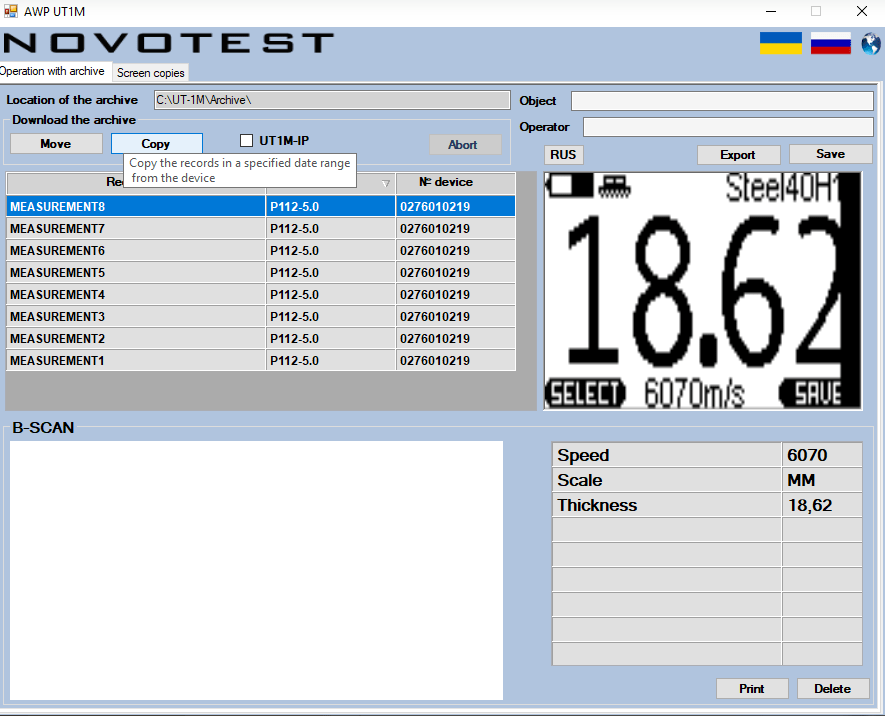

PC cable connection	Online – NOVOTEST.INFO/USB-connect Offline – NOVOTEST USB-Connect
Wireless connection with Android gadgets via NOVOTEST Lab App	UT-1M – No UT-1M (Lab) – Yes
Storage capacity of measurement results	UT-1M – 128 UT-1M (Lab) – 128 in the device + in NOVOTEST Lab App limited only by the memory of the Android gadgets
Measurement archives	Device menu Android smartphone/tablet Cloud storage/PC PDF Excel (CSV)
Menu languages	English, Spanish, Ukrainian, Russian (other languages optional)
Operating environment	Temperature:-20°C~40°C Humidity: 30%~80%R.H.
Power supply	DC 3V (2 pcs standard batteries AA)
Time of continuous work hours, not less, h	25
Charging	External charger for 2pcs AA batteries
Weight of electronic unit with batteries, no more, kg	0.25
Overall dimensions, mm	120x60x25
Package weight, kg	1.5
Package dimensions, cm	332710
Documents	Operation manual UT-1M Quick guide UT-1M Brochure UT-1M/-2A
Country of origin	Made in Ukraine (Europe)
Warranty	Basic – 12 months for electronic unit – 6 months for probes Extended (optional) – up to 3 years

General comparative chart of all models NOVOTEST ultrasonic thickness gauges (without UT-3M-EMAT)

Model name	UT-2A	UT-1M	UT-1M-IP	UT-1M-ST
Measuring thicknesses range for steel, mm	0,4 – 1500 and more, depending on material and surfaces	0,45 – 1500 and more, depending on material and surfaces
Resolution, mm	0,01
Basic measurement accuracy, mm	± (0,01T+0,05) (For range 0.8 – 300 mm)
Basic probes / range for steel	2,5 MHz / 2,5 – 1000 mm 5 MHz / 0,8 – 500 mm 10 MHz / 0,45 – 300 mm
Optional probes / range for steel	1,25 MHz / 4 – 1500 mm 2 MHz / 3 – 1200 mm High-temperature 5MHz (up to 250 °С) / 0,8 – 300 mm Echo-Echo 5MHz for through-coating measurements / 3,5 – 26 mm
Compatibility with Active EMAT Transducer EMAT-A1	Yes	No
Compatible probe types	Dual-element Single-element	Dual-element
Operating modes	Normal A-scan B-scan Manual mode Control mode	Normal B-scan Control mode
Measurement methods	Echo Echo-Echo Peak-Peak Zero-crossing	Echo Echo-Echo
Measurement units	mm inch
Display	Color, 3,5 inch, 480*320	Monochrome, 2,5 inch, 128*64
Menu languages	English Ukrainian Russian (other languages optional)	English Spanish Ukrainian Russian (other languages optional)
Body type/ Dust and moisture protection level	Metal, durable /Standard for shop and field operation	Plastic, with shockproof silicone case / Standard for shop and field operation	Plastic, sealed /High – optionally water immersion up to 1m deep for 30 min	Metal, durable /Standard for shop and field operation
Saving of the settings for different probes	Yes
Compatibility with probes of other manufacturers	Yes
V-path correction and TVG adjusting for the user’s probes	Yes
Storage of measurement results	7000 and more (Limited only by the memory card)	128	128	128
PC cable connection (via www.novotest.info)	Yes
Smartphone Wireless connection (via NOVOTEST Lab)	No	Optional	Optional	No
Charger type	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries	Any USB socket (charger adapter, PC, power bank, etc.)	External charger for batteries
Battery	Built-in Li-ion	2pcs standard АА batteries	3pcs standard АА batteries	2pcs standard АА batteries
Electronic unit weight, no more, kg	0,5	0,25	0,35	0,35
Dimensions (L x W x H), mm	165x90x50	122х76х37	160х90х28	130х90х40
Minimum time of continuous work, h	10	25	25	25
Operating temperature range, ° C	-20 to +40
